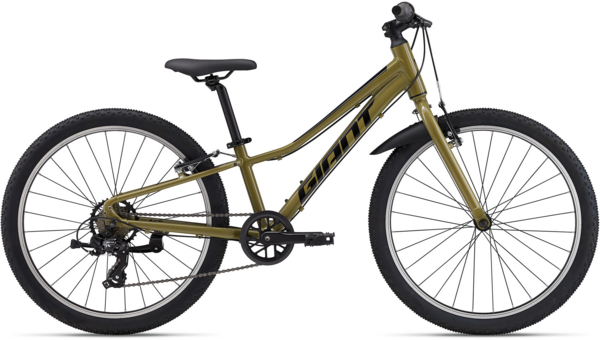

Giant Talon 24 Lite
Details
Off-road control: A shorter seat tube with a lower bottom bracket and standover height creates a lower center of gravity with greater stability and maneuverability on dirt paths and trails. Select models come with a 50mm suspension fork for added control on bumpy terrain.
Kid-sized components: Smaller-diameter handlebars (25mm) and short-reach brake levers offer better grip and control for smaller hands. Shorter cranks ensure smooth pedaling and prevent the pedals from hitting the ground while cornering.
All the accessories: A kickstand, mini-fender and bell make Talon 24 a fun and easy bike for everyday rides around the neighborhood.
| Size | One Size |
|---|---|
| Rider Height (in.) | 4'3"–4'11" |
* Sizing is intended as a guide. If you are between sizes, consider your riding style and preference.
| Size | One Size |
|---|---|
| Seat Tube Length (mm) | 270 |
| Seat Tube Angle (°) | 72.0 |
| Top Tube Length (mm) | 520 |
| Head Tube Length (mm) | 120 |
| Head Tube Angle (°) | 70.0 |
| Fork Rake (mm) | 40 |
| Trail (mm) | 69.5 |
| Wheelbase (mm) | 976.9 |
| Chain Stay Length (mm) | 410 |
| Bottom Bracket Drop (mm) | 40 |
| Stack (mm) | 533.8 |
| Reach (mm) | 346.6 |
| Standover Height (mm) | 547.4 |
| Handlebar Width (mm) | 560 |
| Stem Length (mm) | 60 |
| Crank Length (mm) | 140 |
| Wheel Size | 24" |
Specs
| Frame | ALUXX-grade aluminum |
|---|---|
| Fork | High-tensile steel, rigid |
| Rims | Giant Kids 24", alloy |
| Hubs | Nutted, 28h |
| Spokes | Stainless, 14g |
| Tires | Giant Junior Sport, 24x1.95", 22 tpi |
| Bottom Bracket | Semi-cartridge |
| Crankset | Steel, 32t, 140mm |
| Shifters | Shimano REVOSHIFT, 1x7 |
| Rear Derailleur | Shimano Tourney |
| Cassette/Freewheel | 14x34t |
| Chain | KMC HV500 |
| Brakes | Alloy, linear pull |
| Brake Levers | Alloy, junior MTB |
| Handlebars | Giant Kids, alloy, 31.8mm, 10-degree rise, 560mm, custom taper design |
| Tape/Grips | Giant Junior, custom taper design |
| Stem | Forged alloy Ahead, 10-degree |
| Seatpost | Alloy, double-bolt, 27.2x250mm |
| Saddle | Explora Jr. |
| Pedals | Platform |
| Accessories & Extras | Bell, kickstand, fender, rear derailleur protector |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Dried Herb / One Size | 4711291190429 | 1127003290 |
| Sangria / One Size | 4711291190405 | 1127003190 |
