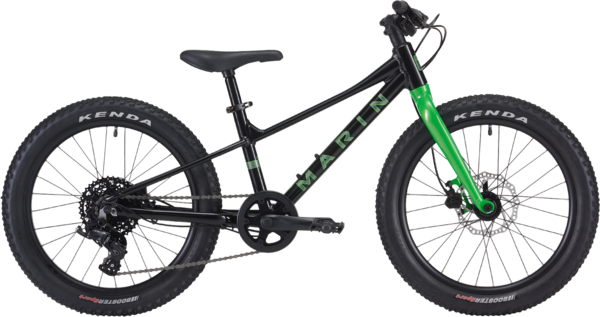

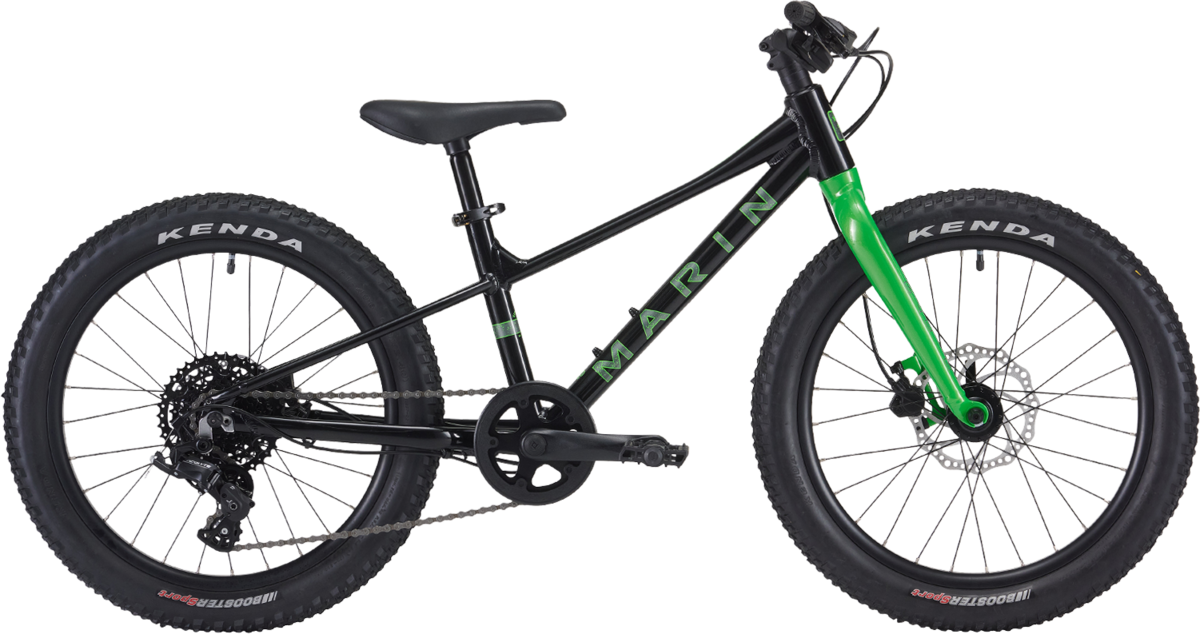

Marin Bear Valley 20
$699.99
Details
Marin's Bear Valley 20 trail bike is ready to shred! Built around a lightweight aluminum frame with proper MTB geometry, a series 1 aluminum fork, fast rolling yet grippy tires, MicroSHIFT Acolyte 1 x 8 speed wide range transmission with clutch enabled rear derailleur, Tektro hydraulic disc brakes with kid specific, close reach levers, and finished off with a myriad of Marin's own kid specific components.
The Bear Valley bike really is one of our most focused and thought through kids trail bikes in the range.
| Frame Size | One |
|---|---|
| Stack (mm) | 401 |
| Reach (mm) | 317 |
| Headtube angle | 67° |
| Headtube length (mm) | 100 |
| Seattube length (mm) | 280 |
| Seattube angle | 75° |
| Toptube effective (mm) | 425 |
| Bb height (mm) | 240 |
| Bb drop (mm) | 30 |
| Chainstay (mm) | 375 |
| Wheelbase (mm) | 892 |
| Standover height (mm) | 518 |
| Fork offset (mm) | 40 |
| Seatpost diameter (mm) | 27.2 |
| Handlebar width (mm) | 580 |
| Stem length (mm) | 60 |
| Crank length (mm) | 130 |
Specs
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
|---|---|
| Frame | Series 1 Lightweight Aluminum MTB, Low Standover, 20” Wheels, Replaceable Derailleur Hanger, Disc Brake |
| Fork | Series 1 Aluminum MTB, Disc Brake |
| Rims | Aluminum, Double Wall |
| Hubs | Forged Aluminum Alloy, 28H |
| Spokes | 14g Stainless Steel |
| Tires | Kenda, Booster, 24x2.4", Wire Bead |
| Crankset | Forged Alloy, 30T, 115mm, Ring Guard |
| Shifters | MicroSHIFT Acolyte, Short-Reach, 8-Speed |
| Rear Derailleur | MicroSHIFT Acolyte, 8-Speed, Super Short Cage, Clutch |
| Cassette/Freewheel | MicroSHIFT Acolyte, 8-Speed, 11-38T |
| Chain | KMC 8-Speed |
| Brakes | Tektro HD-J285 Kid's Specific Hydraulic Disc |
| Brake Levers | Hydraulic Kid's Specific Short Reach Alloy Lever |
| Handlebars | Marin Riser, 50mm Rise, 580mm Width, 19mm OD Grip Section |
| Tape/Grips | Single Densitiy, Thin Diameter Grip |
| Stem | Alloy, 45mm |
| Headset | Threadless |
| Seatpost | Aluminum, 27.2mm, Integrated Saddle/Post |
| Saddle | Marin 24" Integrated Saddle/Post |
| Pedals | Kids Specific Nylon Pedal |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Orange / Blue / 20-inch | 843346134936 | 740741001 | |
| Black / Green / 20-inch | 843346134929 | 740740001 | 210000016554 |
